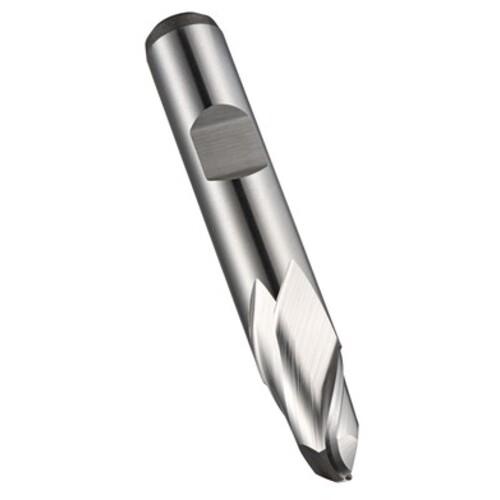

20 mm Dia. × 20 mm Shank × 22 mm DOC × 88 mm OAL, HSSCo Bright, 2 Flute, 30° Helix, Weldon, Ballnose End Mill
BN End Mill; 20 mm Dia. × 22 mm LOC × 20 mm Shank Dia. × 88 mm OAL ; 2 FL ; HSSCo ; Uncoated ; Series C500
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | Shank Cutter Ballnosing |
| Depth of Cut Maximum (APMX) | 22 mm | Corner Radius (RE) | 10 mm |
| Overall Length (OAL) | 88 mm | Tool Type | Milling Cutters |
| Cutting Edge Material | HSSCo | Length Group | Extra Short |
| Coating | Uncoated | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Shank Standard | DIN 1835 B |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | HSS-E (cobalt high speed steel) Material |
| Shank Type | Weldon | Decimal Equivalent | 0.7874″ |
| Usable Length (LU) | 37.5 mm | Series/List # | C500 |
Product Features
| Family Description | E-code # C50020.0 | Country of Origin | Poland |
Shipping Info
Package Weight
6.3
