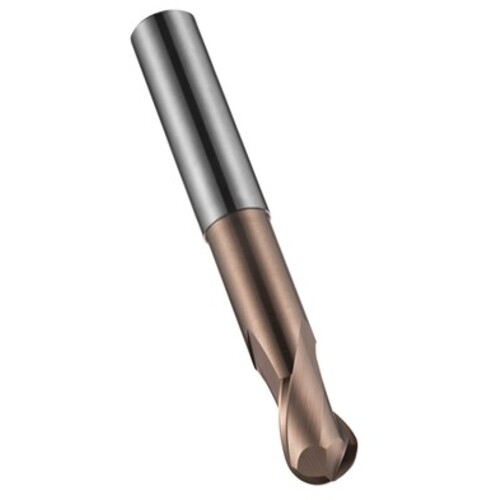

2 mm Dia. × 3 mm Shank × 4 mm DOC × 60 mm OAL, Carbide TiSiN, 2 Flute, 30° Helix, Round, Ballnose End Mill
BN End Mill; 2 mm Dia. × 4 mm LOC × 3 mm Shank Dia. × 60 mm OAL ; 2 FL ; Carbide ; TiSiN ; Series S231
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Application | Shank Cutter Ballnosing |
| Depth of Cut Maximum (APMX) | 4 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 60 mm | Tool Type | Milling Cutters |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | TiSiN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | HM Material |
| Shank Type | Round | Decimal Equivalent | 0.0787″ |
| Usable Length (LU) | 14 mm | Series/List # | S231 |
Product Features
| Family Description | E-code # S2312.0XD3 | Country of Origin | Malaysia |
Shipping Info
Package Weight
0.287
