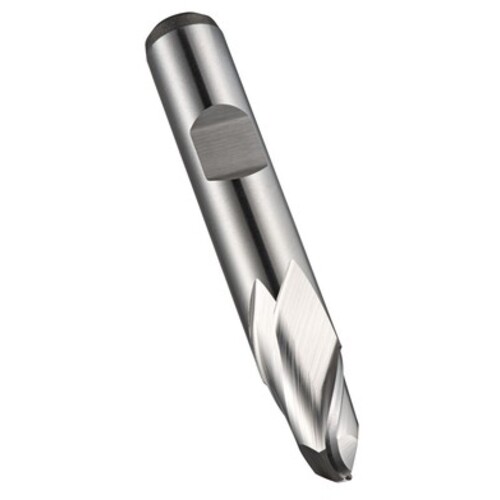

2 mm Dia. × 6 mm Shank × 4 mm DOC × 48 mm OAL, HSSCo Bright, 2 Flute, 30° Helix, Weldon, Ballnose End Mill
BN End Mill; 2 mm Dia. × 4 mm LOC × 6 mm Shank Dia. × 48 mm OAL ; 2 FL ; HSSCo ; Uncoated ; Series C500
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Application | Shank Cutter Ballnosing |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Milling Cutters |
| Overall Length (OAL) | 48 mm | Length Group | Extra Short |
| Cutting Edge Material | HSSCo | End Shape | Ball Nose |
| Coating | Uncoated | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 2 | Body Material | HSS-E (cobalt high speed steel) Material |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.0787″ |
| Shank Type | Weldon | Series/List # | C500 |
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Family Description | E-code # C5002.0 | Country of Origin | Poland |
Shipping Info
Package Weight
0.385
