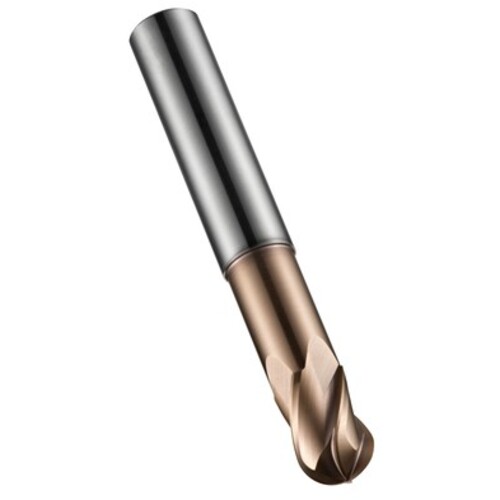

12 mm Dia. × 12 mm Shank × 16 mm DOC × 75 mm OAL, Carbide TiSiN, 4 Flute, 30° Helix, Round, Ballnose End Mill
BN End Mill; 12 mm Dia. × 16 mm LOC × 12 mm Shank Dia. × 75 mm OAL ; 4 FL ; Carbide ; TiSiN ; Series S534
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | Shank Cutter Ballnosing |
| Depth of Cut Maximum (APMX) | 16 mm | Corner Radius (RE) | 6 mm |
| Overall Length (OAL) | 75 mm | Tool Type | Milling Cutters |
| Cutting Edge Material | Carbide | Length Group | Extra Short |
| Coating | TiSiN | End Shape | Ball Nose |
| Flute Count (NOF) | 4 | Shank Standard | DIN 6535 HA |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | HM Material |
| Shank Type | Round | Decimal Equivalent | 0.4724″ |
| Usable Length (LU) | 38 mm | Series/List # | S534 |
Product Features
| Family Description | E-code # S53412.0 | Country of Origin | Malaysia |
Shipping Info
Package Weight
3.85
