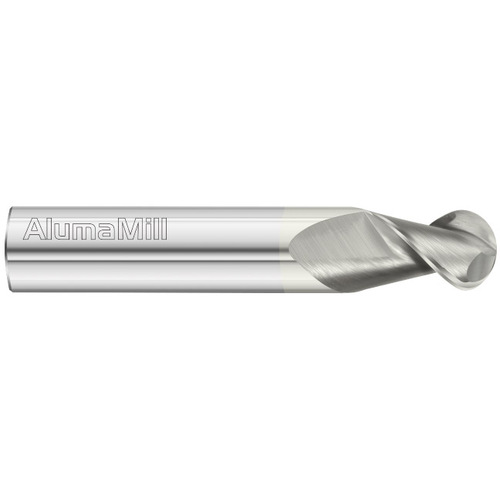

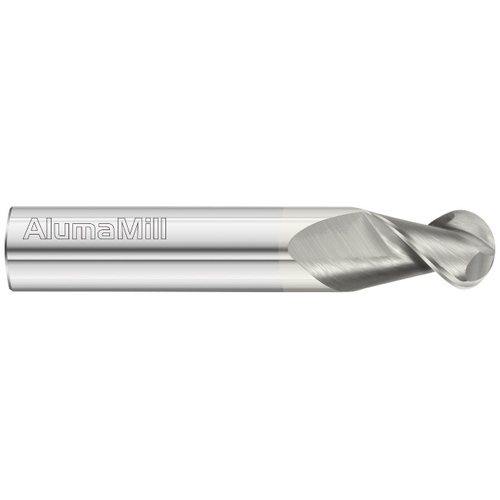

3825STB 1/2X3/4X3 2FL BN

BN End Mill; 1/2″ Dia. × 3/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide

Item # FUL 38123

Brand: Fullerton Tool

MFG #: 38123

Legacy Part #: FT8538123

Trade Name: 3825 AlumaMill End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/2″

Tool Type

Center Cut|Single-End

Depth of Cut Maximum (APMX)

3/4″

Length Group

Short|Stub

Overall Length (OAL)

3″

End Shape

Ball

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.5″

Flute Helix Angle (FHA)

45 Degrees

Product Features

Remarks

‎

Square, Ball and Radius End

2 Flutes

45° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.275
