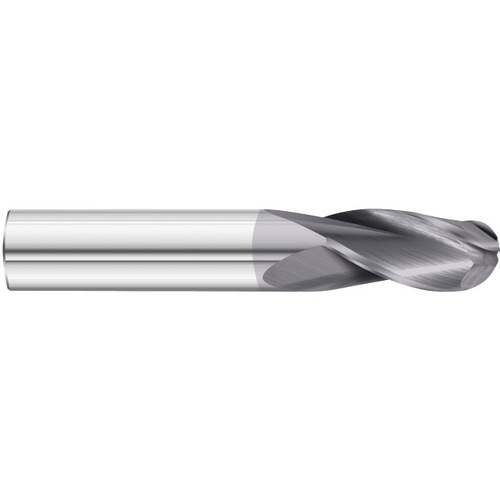

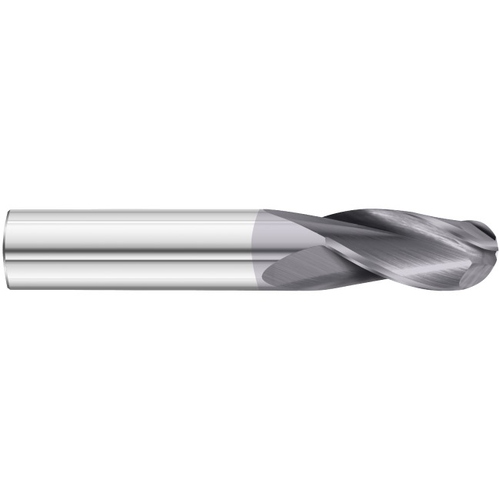

‎1/4″ Dia. × 1/4″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide TiAlN, 3 Flute, 30° Helix, Round, External , Ballnose End Mill

‹ ›

‎1/4″ Dia. × 1/4″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide TiAlN, 3 Flute, 30° Helix, Round, External , Ballnose End Mill

‎BN End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; TiAlN

Item # FUL 30806

Brand: Fullerton Tool

MFG #: 30806

Legacy Part #: FT8530806

Trade Name: 3300 3-Flute General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

1/4″

Flute Helix Angle (FHA)

30 Degrees

Connection Diameter Machine Side (DCONMS)

1/4″

Shank Type

Round

Depth of Cut Maximum (APMX)

3/4″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

‎2-1/2″

Length Group

Regular

Cutting Edge Material

Carbide

End Shape

Ball

Coating

TiAlN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.25″

Product Features

Remarks

‎

Square and Ball End

3 Flutes

30° Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and TiN, TiCN and TiAlN Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Country of Origin

USA

Shipping Info

Package Weight

0.06
