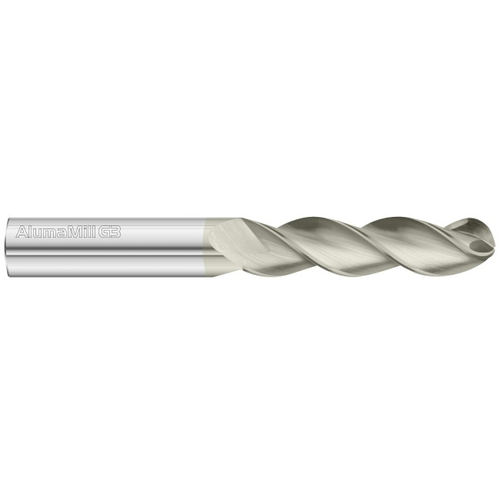

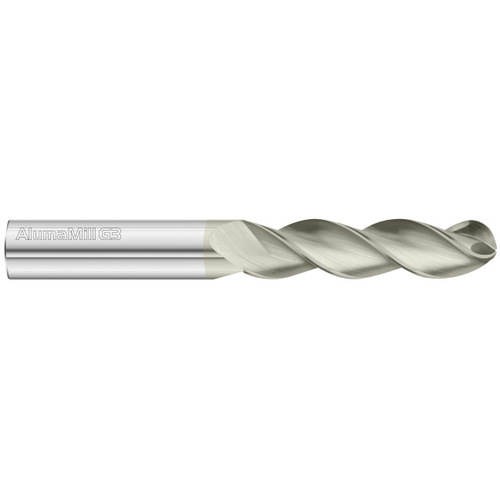

‎1/2″ Dia. × 1/2″ Shank × 2-1/2″ DOC × 5″ OAL, Carbide FC5, 3 Flute, 37.5° Helix, Round, External , Ballnose End Mill

‹ ›

‎1/2″ Dia. × 1/2″ Shank × 2-1/2″ DOC × 5″ OAL, Carbide FC5, 3 Flute, 37.5° Helix, Round, External , Ballnose End Mill

‎BN End Mill; 1/2″ Dia. × 2-1/2″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 3 FL ; Carbide ; ZrN

Item # FUL 27562

Brand: Fullerton Tool

MFG #: 27562

Legacy Part #: FT8527562

Trade Name: 3833 AlumaMill G3 End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Flute Helix Angle (FHA)

37.5 Degrees

Connection Diameter Machine Side (DCONMS)

1/2″

Shank Type

Round

Depth of Cut Maximum (APMX)

‎2-1/2″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

5″

Length Group

Extra Long

Cutting Edge Material

Carbide

End Shape

Ball

Coating

ZrN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.5″

Product Features

Remarks

‎

Square, Ball and Radius End

3 Flutes

37.5° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.0000″ -. 0005″ / +0.000–0.013mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.395
