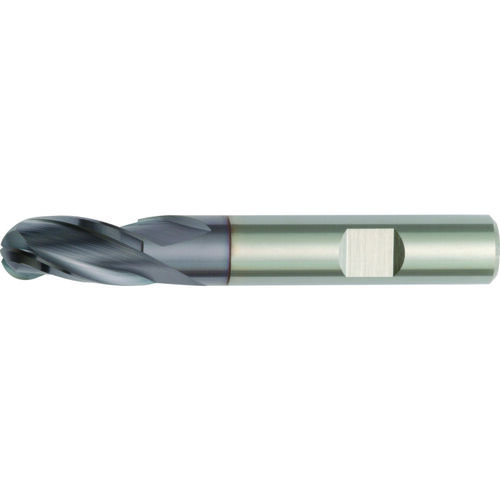

10 mm Dia. × 10 mm Shank × 19 mm DOC × 72 mm OAL, Carbide TiAlN, 3 Flute, CW|35° Helix, Weldon, Ballnose End Mill
BN End Mill; 10 mm Dia. × 19 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 FL ; Carbide ; TiAlN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 10 mm | Flute Helix Angle (FHA) | CW|35 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 19 mm | Usable Length (LU) | 19 mm |
| Overall Length (OAL) | 72 mm | Corner Radius (RE) | 5 mm |
| Cutting Edge Material | Carbide | Grade | TIALN-LW |
| Coating | TiAlN | End Shape | Ball Nose |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.3937″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.154
