3200BTIALN 3/64X1/8X1.5

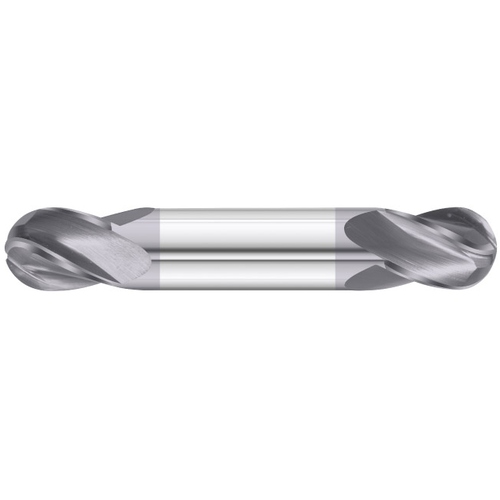

‎BN End Mill; 3/64″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; TiAlN

Item # FUL 36042

Brand: Fullerton Tool

MFG #: 36042

Legacy Part #: FT8536042

Trade Name: 3200 4-Flute General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

3/64″

Flute Helix Angle (FHA)

30 Degrees

Connection Diameter Machine Side (DCONMS)

1/8″

Shank Type

Round

Depth of Cut Maximum (APMX)

1/8″

Tool Type

Center Cut|Double-End

Overall Length (OAL)

‎1-1/2″

Length Group

Short|Stub

Cutting Edge Material

Carbide

End Shape

Ball

Coating

TiAlN

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.046875″

Product Features

Remarks

‎

Square, Ball and Radius End Options

4 Flutes

30° Helix

Single and Double End Designs

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Available Uncoated and TiN, TiCN and TiAlN Coatings

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items furnished with Weldon Flats

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.013
