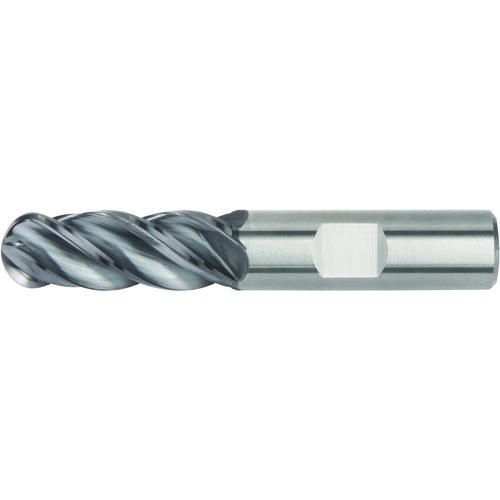

5/8″ Dia. × 5/8″ Shank × 1-1/4″ DOC × 3-1/2″ OAL, Carbide TiAlN, Unequal Flute Spacing , 4 Flute, CW|38° Helix, Weldon, Ballnose End Mill
BN End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; Carbide ; TiAlN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 5/8″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 7.94 mm |
| Overall Length (OAL) | 3-1/2″ | Grade | TIALN-LW |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiAlN | Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 | Style | 82-06 SEM Ball Nose Side-Cntr |
| Flute Helix Angle (FHA) | CW|38 Degrees | Decimal Equivalent | 0.625″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.562
