GTMH32100RE05 QM3

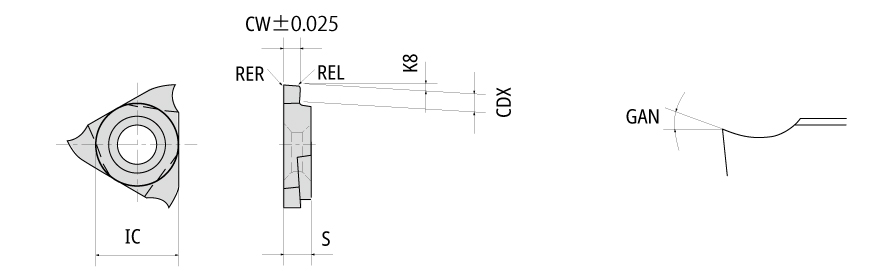

Grooving Insert; 1 mm CW × 2 mm Max Depth × 3.18 mm Thickness × 9.525 mm IC ; Carbide ; QM3 ; TiCN
| Cutting Width (CW) | 1 mm | Grade | QM3 |
| Cutting Depth Maximum (CDX) | 2 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.18 mm | Application | | Inserts for miniature | |
| Inscribed Circle Diameter (IC) | 9.525 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Rake Angle (GAN) | 20 Degrees | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Country of Origin | Japan |
