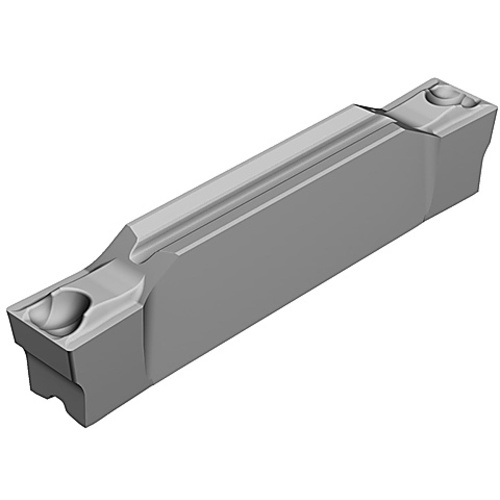

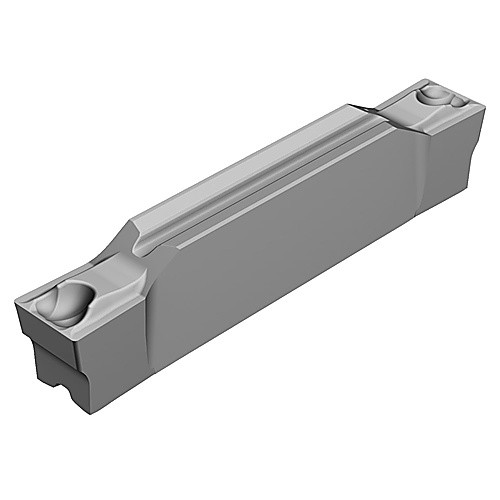

C2I-H2N-0476-0008-GF1205
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.8 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 24.25 mm | Chip Breaker Type | GF |
| Clearance Angle Major (AN) | 7 Degrees | Insert Style | C2I |
| Insert Thickness (S) | 4.35 mm | Insert Seat Size Code (SSC) | H |
| Coating | AlTiN | Mounting Style | Concave prismatic section with rail |
| Grade | 1205 | Series/List # | C2I-x2N-GF |
| Shape | Irregular | Coating Process | PVD |
| Cutting Edge Material | Carbide | Depth of Groove | 24.25 mm |
| Application | Grooving;Parting off | Measurement Type | Metric |
| Applicable Material | | Super Alloys / Titanium | Stainless Steel | |
Product Features
| Remarks |
|
Country of Origin | Sweden |
Shipping Info
Package Weight
0.066
