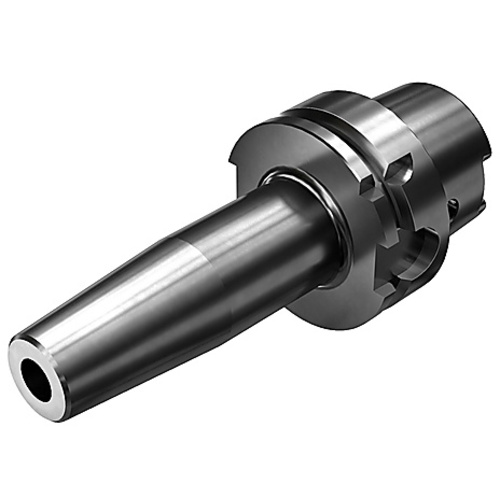

HA06-SH06Q-S-160
Additional Tariff Surcharge of 8 %
| Connection Diameter Machine Side (DCONMS) | 63 mm | Clamping Length Workpiece Side (LSCWS) | 37.5 mm |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Nose Diameter | 21 mm |
| Shank Size (SS) | 63 mm | Type | Shrink Fit Chuck |
| Body Length (LB) | 38.14 mm | Series/List # | HAxx-SH..Q-S |
| Body Length_2 (LB_2) | 134 mm | Measurement Type | Metric |
| Body Diameter (BD) | 21 mm | Tool Type | Rotating adaptor |
| Body Diameter_2 (BD_2) | 27 mm | Body Material | | Steel | |
| Body Length Maximum (LBX) | 160 mm | Connection Code Machine Side (CCMS) | 63 mm |
| Overall Length (OAL) | 192 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Shank Type | HSK-A | Connection Diameter Maximum Workpiece Side (DCONXWS) | 6 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Model Number | HA06-SH06Q-S-160 |
Product Features
| Remarks |
|
Country of Origin | France |
Shipping Info
Package Weight
4.614
