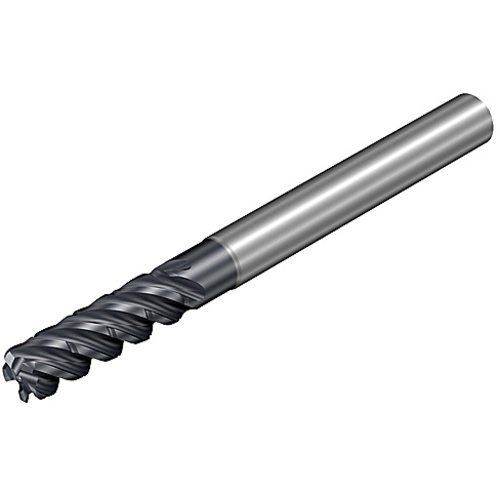

2F365-0635-076-TD 1745
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1/4″ | Neck Diameter (DN) | 0.237″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Body Half Taper Angle (BHTA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 0.8287″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide End Mill |
| Cutting Edge Material | Carbide | Shank Standard | DIN6535-HB |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 42 Degrees | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | 2F365-TD (2) (INCH) |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Usable Length (LU) | 0.9945″ | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Stainless steel | Super Alloys / Titanium | | Single / Double End | Single End |
| Application | High Feed Side Milling | Center Cutting | No |
| Corner Radius (RE) | 0.03″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Diameter Tolerance | h10 |
| Grade | 1745 |
Product Features
| Remarks |
|
Country of Origin | Italy |
Shipping Info
Package Weight
0.055
