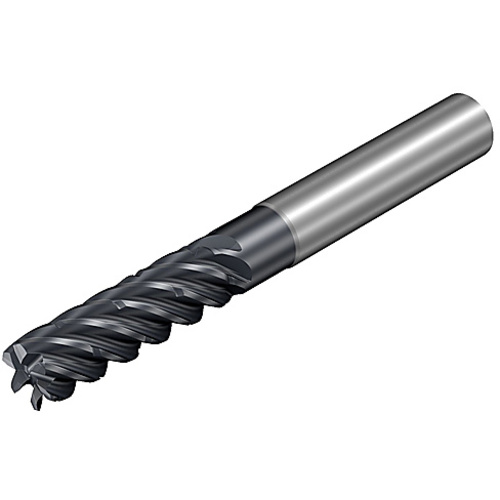

2F366-1600-200-TD 1745
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | Grade | 1745 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Neck Diameter (DN) | 15.2 mm |
| Depth of Cut Maximum (APMX) | 50 mm | Body Half Taper Angle (BHTA) | 30 Degrees |
| Overall Length (OAL) | 124 mm | Peripheral Effective Cutting Edge Count (ZEFP) | 6 |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide End Mill |
| Coating | TIALSIN | Shank Standard | DIN6535-HB |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 42 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | 2F366-TD (2) |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 2 mm |
| Usable Length (LU) | 2 mm | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Stainless steel | Super Alloys / Titanium | | Single / Double End | Single End |
| Application | High Feed Side Milling | Center Cutting | No |
| Corner Radius (RE) | 2 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Cutting Diameter Tolerance | h10 |
Product Features
| Remarks |
|
Country of Origin | Italy |
Shipping Info
Package Weight
0.672
