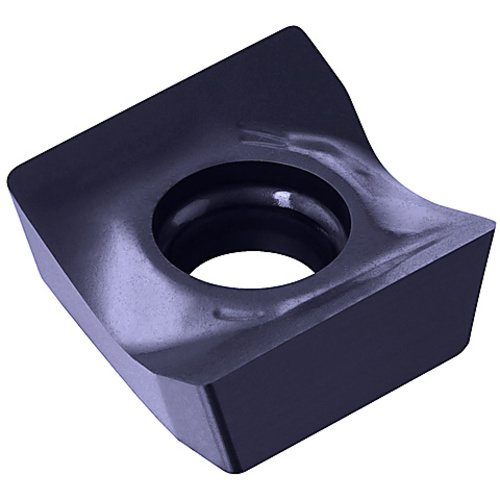

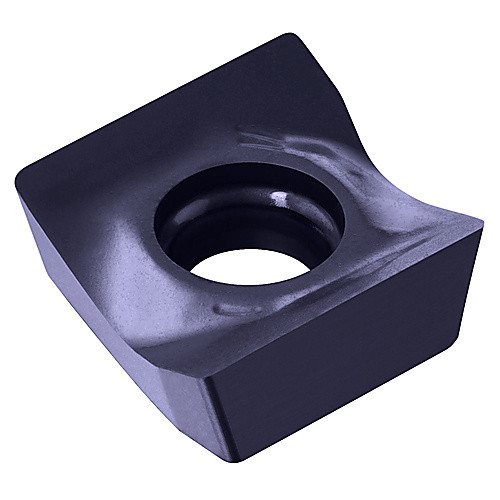

R590-110508H-KL 1220
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Size | 1105 |
| Application | Shoulder Milling | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 0.8 mm | Chip Breaker Type | KL |
| Depth of Cut Maximum (APMX) | 10 mm | Series/List # | R/L590..H..L |
| Insert Width (W1) | 11.5 mm | Hole Diameter | 4.6 mm |
| Insert Thickness (S) | 5 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.7 mm | Tool Type | Milling Indexable Insert |
| Coating | TiAlSiN | Coating Process | PVD |
| Grade | 1220 | Number of Cutting Edges | 2 |
| Shape | Irregular | Cutting Edge Effective Length (LE) | 11 mm |
| Insert Style | R590 | Measurement Type | Metric |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.114
