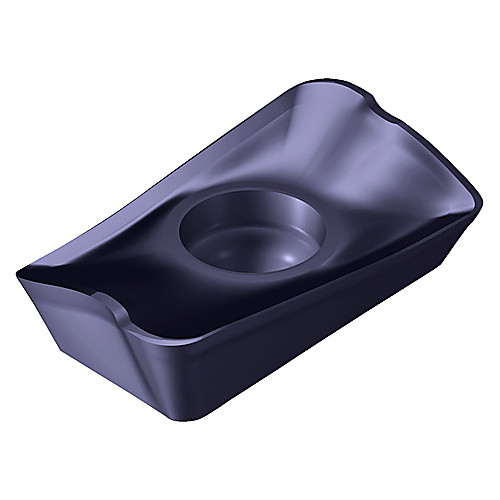

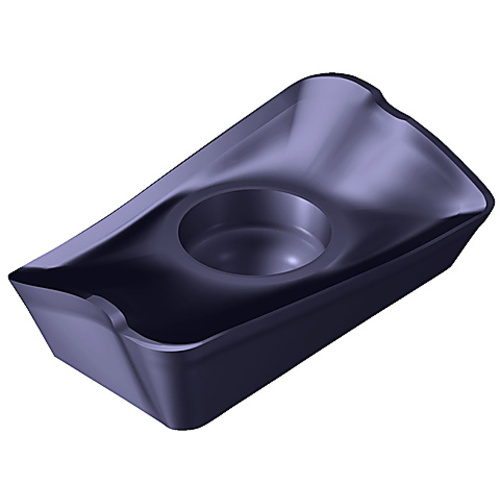

R390-11 T3 08M-KM 1220
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Size | 11T3 |
| Application | Shoulder Milling | Clearance Angle Major (AN) | 21 Degrees |
| Cutting Edge Length (L) | 11.45 mm | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 0.8 mm | Chip Breaker Type | KM |
| Depth of Cut Maximum (APMX) | 10 mm | Series/List # | R390-11..M-KM |
| Insert Width (W1) | 6.8 mm | Hole Diameter | 2.8 mm |
| Insert Thickness (S) | 3.59 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.2 mm | Tool Type | Milling Indexable Insert |
| Coating | TiAlSiN | Coating Process | PVD |
| Grade | 1220 | Number of Cutting Edges | 2 |
| Shape | Rectangle | Cutting Edge Effective Length (LE) | 10 mm |
| Insert Style | R390 | Measurement Type | Metric |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.04
