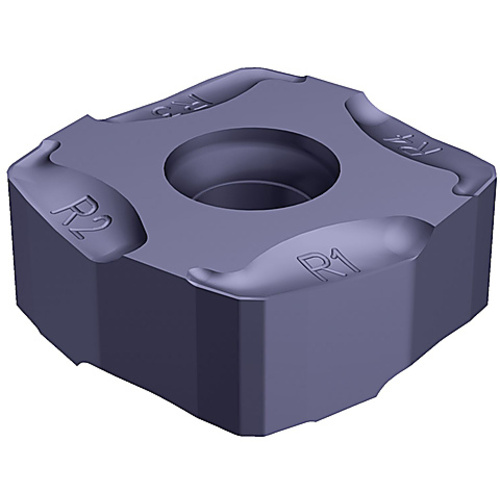

R365-1505ZNM-M50 1220
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Corner Chamfer Width (CHW) | 0.71 mm |
| Application | Shoulder Milling | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 0.3 mm | Chip Breaker Type | M50 |
| Depth of Cut Maximum (APMX) | 6 mm | Series/List # | R/L365..M-M50 |
| Inscribed Circle Diameter (IC) | 15 mm | Hole Diameter | 4.6 mm |
| Insert Thickness (S) | 5.66 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.5 mm | Tool Type | Milling Indexable Insert |
| Coating | TiAlSiN | Coating Process | PVD |
| Grade | 1220 | Number of Cutting Edges | 8 |
| Shape | Irregular | Cutting Edge Effective Length (LE) | 6.4 mm |
| Insert Style | R365 | Measurement Type | Metric |
| Insert Size | 1505 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.309
