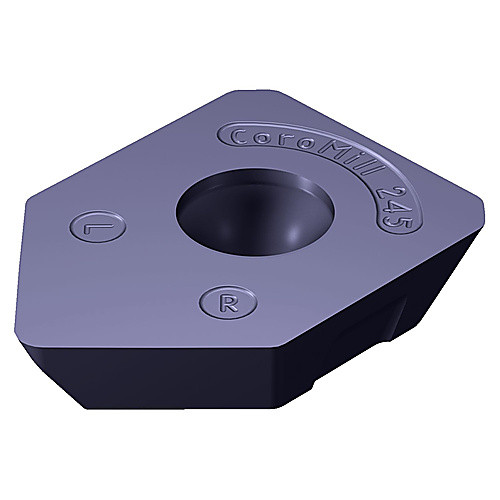

R245-12 T3 E-W 1220
| Applicable Material | | Cast Iron | | Insert Size | 12T3 |
| Application | Shoulder Milling | Clearance Angle Major (AN) | 20 Degrees |
| Cutting Edge Length (L) | 13.4 mm | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 1.5 mm | Chip Breaker Type | W |
| Depth of Cut Maximum (APMX) | 2.5 mm | Series/List # | R245..E-W (TIP) |
| Inscribed Circle Diameter (IC) | 13.4 mm | Hole Diameter | 4.1 mm |
| Insert Thickness (S) | 3.96875 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 8.2 mm | Tool Type | Milling Indexable Insert |
| Coating | TiAlSiN | Coating Process | PVD |
| Grade | 1220 | Number of Cutting Edges | 1 |
| Shape | Square | Cutting Edge Effective Length (LE) | 10 mm |
| Insert Style | R245 | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.153
