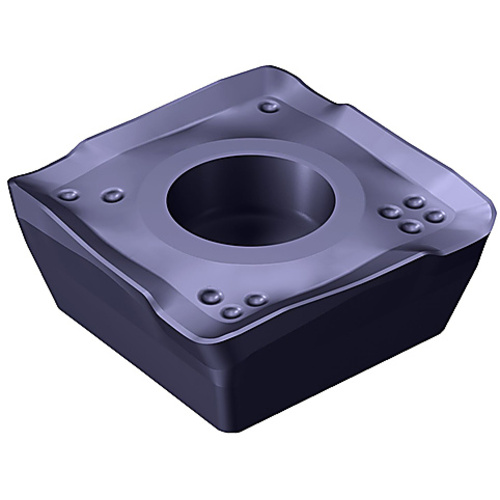

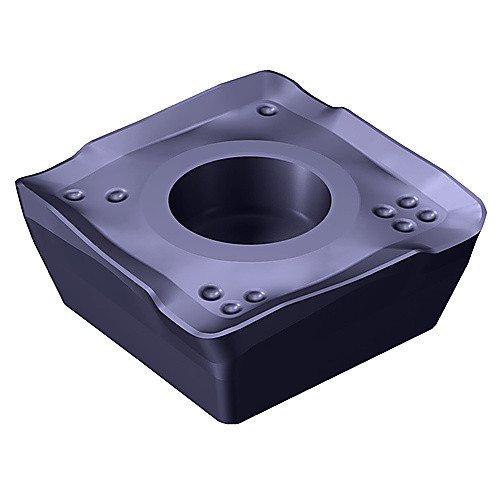

490R-08T304M-KL 1220
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Size | 08T3 |
| Application | Shoulder Milling | Clearance Angle Major (AN) | 15 Degrees |
| Cutting Edge Length (L) | 8.5 mm | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 0.4 mm | Chip Breaker Type | KL |
| Depth of Cut Maximum (APMX) | 5.5 mm | Series/List # | 490R/L..M-KL |
| Inscribed Circle Diameter (IC) | 8.5 mm | Hole Diameter | 2.8 mm |
| Insert Thickness (S) | 3.3 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.5 mm | Tool Type | Milling Indexable Insert |
| Coating | TiAlSiN | Coating Process | PVD |
| Grade | 1220 | Number of Cutting Edges | 4 |
| Shape | Square | Cutting Edge Effective Length (LE) | 5.6 mm |
| Insert Style | 490R | Measurement Type | Metric |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.04
