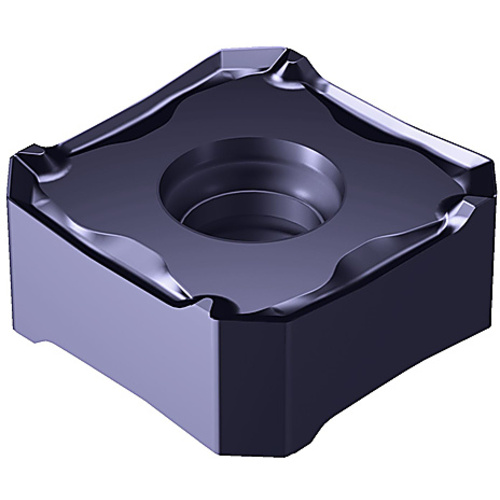

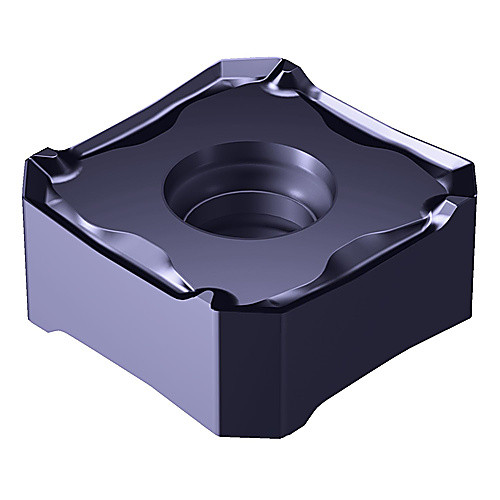

345R-1305M-KL 1220
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Size | 1305 |
| Application | Shoulder Milling | Cutting Direction (HAND) | Right |
| Cutting Edge Length (L) | 13 mm | Chip Breaker Type | KL |
| Corner Radius (RE) | 0.8 mm | Series/List # | 345R/L..M-KL |
| Depth of Cut Maximum (APMX) | 6 mm | Hole Diameter | 4.8 mm |
| Inscribed Circle Diameter (IC) | 13 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5.05 mm | Tool Type | Milling Indexable Insert |
| Wiper Edge Length (BS) | 2 mm | Coating Process | PVD |
| Coating | TiAlSiN | Number of Cutting Edges | 8 |
| Grade | 1220 | Cutting Edge Effective Length (LE) | 8.8 mm |
| Shape | Square | Measurement Type | Metric |
| Insert Style | 345R |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.197
