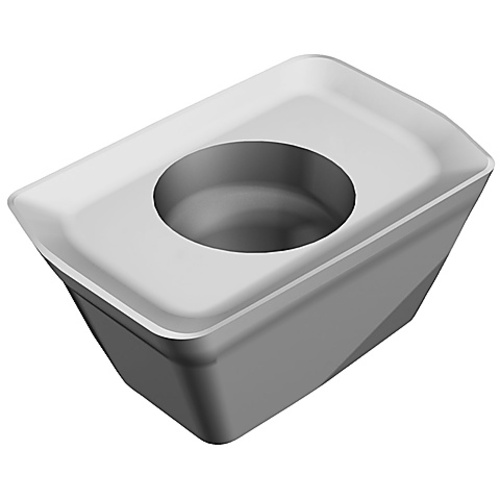

MS20-10T308M-M20 530
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Clearance Angle Major (AN) | 19 Degrees |
| Application | Shoulder Milling | Cutting Direction (HAND) | Right |
| Cutting Edge Length (L) | 9.7 mm | Chip Breaker Type | M20 |
| Corner Radius (RE) | 0.8 mm | Series/List # | MS20..M-M20 |
| Depth of Cut Maximum (APMX) | 9 mm | Hole Diameter | 3.4 mm |
| Insert Width (W1) | 6.7 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 3.6 mm | Tool Type | Milling Indexable Insert |
| Wiper Edge Length (BS) | 1.2 mm | Coating Process | Uncoated Grade |
| Grade | 530 | Number of Cutting Edges | 2 |
| Shape | Rectangle | Cutting Edge Effective Length (LE) | 9.1 mm |
| Insert Style | MS20 | Measurement Type | Metric |
| Insert Size | 10T3 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.044
