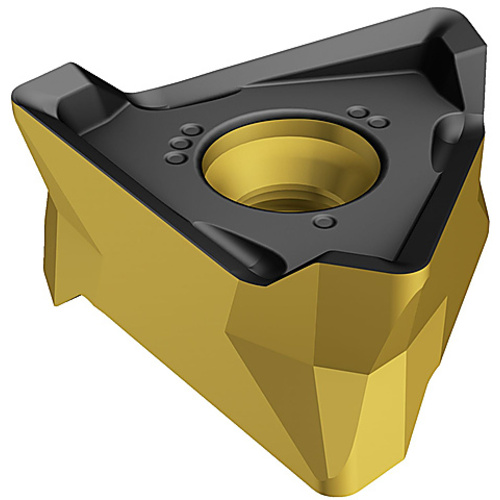

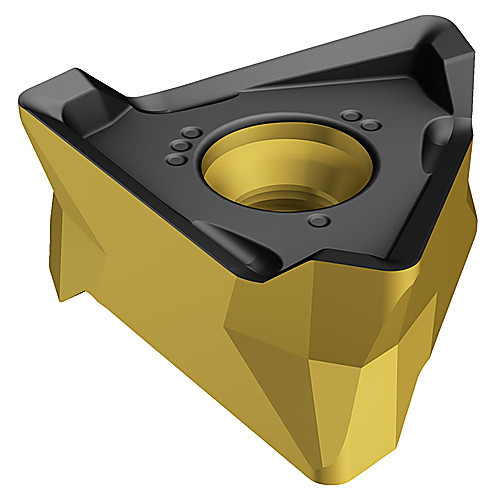

MS60-160512M-M40 3330
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Size | 1605 |
| Application | Shoulder Milling | Clearance Angle Major (AN) | 4.5 Degrees |
| Cutting Edge Length (L) | 8 mm | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 1.2 mm | Chip Breaker Type | M40 |
| Depth of Cut Maximum (APMX) | 8 mm | Series/List # | MS60..M-M40 |
| Inscribed Circle Diameter (IC) | 9.6 mm | Hole Diameter | 3.4 mm |
| Insert Thickness (S) | 5.35 mm | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 1.3 mm | Tool Type | Milling Indexable Insert |
| Coating | TiCN+Al2O3+TiN | Coating Process | CVD |
| Grade | 3330 | Number of Cutting Edges | 6 |
| Shape | Triangle | Cutting Edge Effective Length (LE) | 8 mm |
| Insert Style | MS60 | Measurement Type | Metric |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.132
