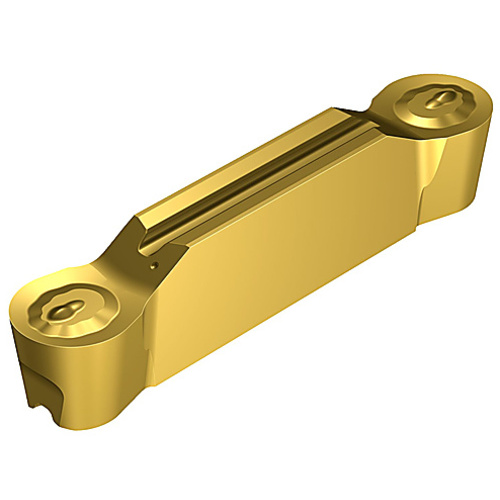

C2I-H2N-0400-RO 1135
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 4 mm | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 2 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 23.28 mm | Chip Breaker Type | RO |
| Clearance Angle Major (AN) | 7 Degrees | Insert Style | C2I |
| Insert Thickness (S) | 4.35 mm | Insert Seat Size Code (SSC) | H |
| Coating | TiCrN+Al2O3+TiN | Mounting Style | Concave prismatic section with rail |
| Grade | 1135 | Series/List # | C2I-x2N-RO |
| Shape | Irregular | Coating Process | CVD |
| Cutting Edge Material | Carbide | Depth of Groove | 23.28 mm |
| Application | Grooving | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | Steel | |
Product Features
| Remarks |
|
Country of Origin | Sweden |
Shipping Info
Package Weight
0.062
