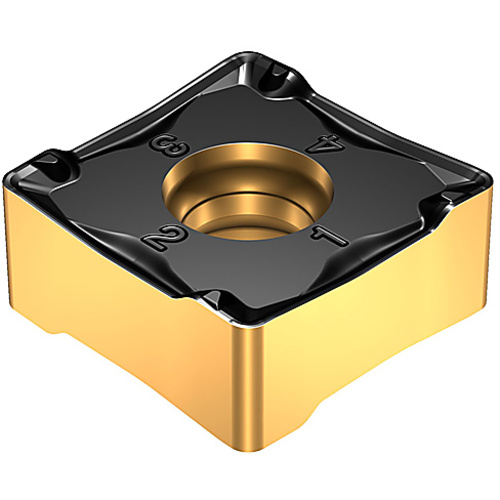

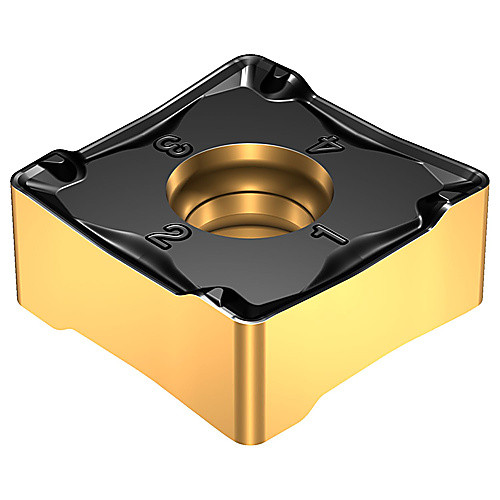

MF80-130512M-M50 3330
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Insert Style | MF80 |
| Application | Shoulder Milling | Insert Size | 1305 |
| Cutting Edge Length (L) | 13 mm | Cutting Direction (HAND) | Right |
| Corner Radius (RE) | 1.2 mm | Chip Breaker Type | M50 |
| Depth of Cut Maximum (APMX) | 8.6 mm | Series/List # | MF80 M-M50 |
| Inscribed Circle Diameter (IC) | 13 mm | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 5 mm | Tool Type | Milling Indexable Insert |
| Wiper Edge Length (BS) | 1.6 mm | Coating Process | CVD |
| Coating | TiCN+Al2O3+TiN | Number of Cutting Edges | 8 |
| Grade | 3330 | Cutting Edge Effective Length (LE) | 8.6 mm |
| Shape | Square | Measurement Type | Metric |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.214
