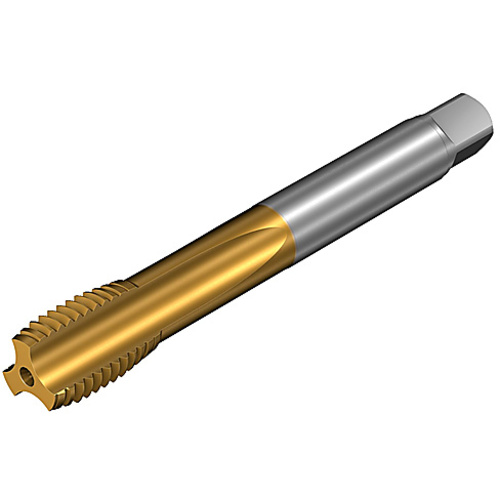

T100-PM105DB-M16X150P1PL
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M16 | Coating | TiN |
| Thread Pitch (TP) | 1.5 mm | Tapping Prehole Diameter (Pre-hole) | 14.7 mm |
| Thread Standard | Metric Fine | Flute Type | Straight |
| Overall Length (OAL) | 100 mm | Style | Semi-bottoming |
| Thread Cutting Part Length (THL) | 21 mm | Shank Type | DIN |
| Usable Length (LU) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Applicable Material | | Steel | | Grade | P1PL |
| Cutting Edge Material | HSS-E-PM | Series/List # | T100-PM105DB |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M16 × 1.5 |
| Standard | DIN374 | Body Material | HSS-E-PM |
| Tool Type | Cutting tap for cylindrical threads with chip flutes | Thread Form Type (THFT) | MF 60 Degrees |
| Chamfer | 2P-3P |
Product Features
| Remarks |
|
Country of Origin | India |
Shipping Info
Package Weight
0.154
