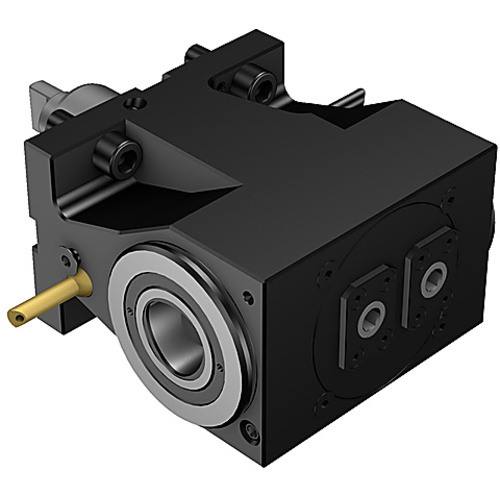

C4-DNI-MS60A-DTE-A
Holder ; 40 mm Hole Dia. ; 60 mm Shank Dia. ; 40 mm Shank Size ; 130 mm LPR ; 221 mm OAL ; Coromant Capto Shank ; Series Cx-DNI-MS-DTE
Additional Tariff Surcharge of 8 %
| Protruding Length (LPR) | 130 mm | Weight of Item (WT) | 11.9 kg |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 221 mm | Body Material | Steel |
| Shank Size (SS) | 40 mm | Measurement Type | Metric |
| Shank Length (LS) | 49 mm | Tool Type | Clamping unit |
| Shank Type | Coromant Capto | Series/List # | Cx-DNI-MS-DTE |
| Functional Length (LF) | 90 mm | Connection Code Machine Side (CCMS) | MS60A |
| Functional Width (WF) | 64 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
26.235
