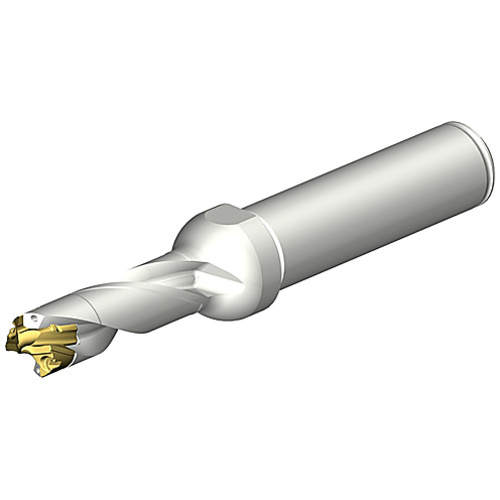

DE10-D0950-095O12-3
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 0.374″-0.3933″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 1.2232″ | Cutting Diameter Minimum (DCN) | 0.374″ |
| Application | Drilling with Symmetrical Point | Cutting Diameter Maximum (DCX) | 0.3933″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Point Length (PL) | 0.0539″ |
| Shank Size (SS) | 1/2″ | Measurement Type | Inch |
| Shank Type | Cylindrical | Length Group | 3xD |
| Tool Type | Indexable drill - symetrical point | Master Insert Identification (MIID) | DE10-0990-095-M5 |
| Shank Length (LS) | 1.7717″ | Flute Type | Spiral (Helical) Chip Flute |
| Functional Length (LF) | 1.6429″ | Helix Angle | 30 Degrees |
| Overall Length (OAL) | 3.4685″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Decimal Equivalent | 0.374″-0.3933″ |
| Cutting Direction (HAND) | Right Hand | Model Number | DE10-D0950-095O12-3 |
Product Features
| Remarks |
|
Country of Origin | Sweden |
Shipping Info
Package Weight
0.139
