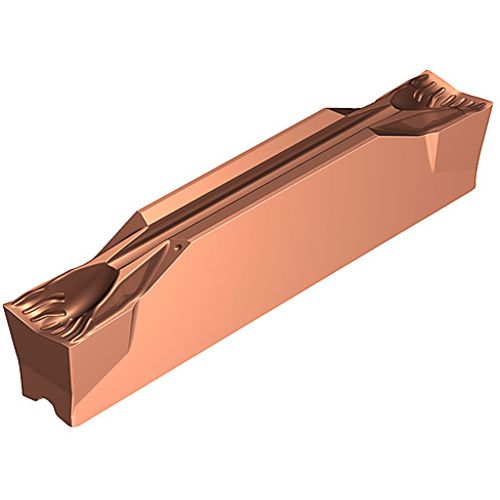

C2I-H2N-0400-0001-CF1225
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 4 mm | Insert Size | H |
| Corner Radius (RE) | 0.1 mm | Insert Style | C2I |
| Corner Radius Tolerance (+/-) (RETOL) | (+/-)0.05 | Mounting Style | Concave prismatic section with rail |
| Insert Thickness (S) | 4.35 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 23.72 mm | Series/List # | C2I-x2N-CF |
| Cutting Edge Material | Carbide | Tool Type | Parting Off |
| Coating | TIALN+TIALSIN+TISIN | Max D.O.C. | 23.72 mm |
| Grade | 1225 | Measurement Type | Metric |
| Shape | Irregular | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | H |
| Application | Parting Off | Cutting Edge Angle Major Right Hand (PSIRR) | 5 Degrees |
| Applicable Material | | Steel | Stainless Steel | | Cutting Edge Count (CEDC) | 2 |
| Chip Breaker Type | CF | Cutting Width Tolerance (+/-) (CWTOL) | (+/-)0.045 |
Product Features
| Remarks |
|
Country of Origin | Sweden |
Shipping Info
Package Weight
0.063
