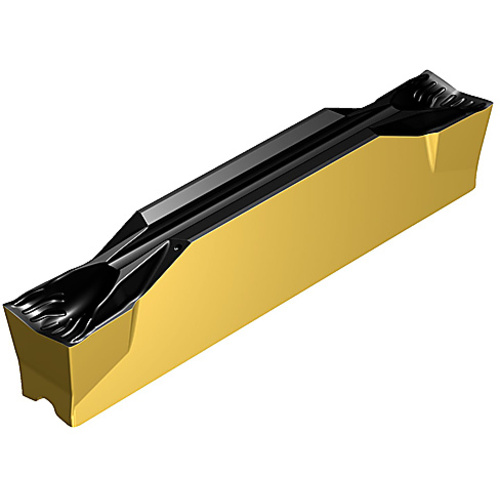

C2I-G2N-0300-0001-CF4425
Parting Off Insert; 3 mm CW × 4.33 mm Thickness × 0.1 mm Corner Radius ; Neutral ; Carbide ; TICN+AL2O3+TIN ; 4425 ; Series C2I-x2N-CF
Additional Tariff Surcharge of 8 %
| Cutting Width (CW) | 3 mm | Insert Size | G |
| Corner Radius (RE) | 0.1 mm | Insert Style | C2I |
| Corner Radius Tolerance (+/-) (RETOL) | (+/-)0.05 | Mounting Style | Concave prismatic section with rail |
| Insert Thickness (S) | 4.33 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 18.55 mm | Series/List # | C2I-x2N-CF |
| Cutting Edge Material | Carbide | Tool Type | Parting Off |
| Coating | TICN+AL2O3+TIN | Max D.O.C. | 18.55 mm |
| Grade | 4425 | Measurement Type | Metric |
| Shape | Irregular | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | G |
| Application | Parting Off | Cutting Edge Angle Major Right Hand (PSIRR) | 5 Degrees |
| Applicable Material | | Steel | Cast Iron | | Cutting Edge Count (CEDC) | 2 |
| Chip Breaker Type | CF | Cutting Width Tolerance (+/-) (CWTOL) | (+/-)0.04 |
Product Features
| Remarks |
|
Country of Origin | Sweden |
Shipping Info
Package Weight
0.01
