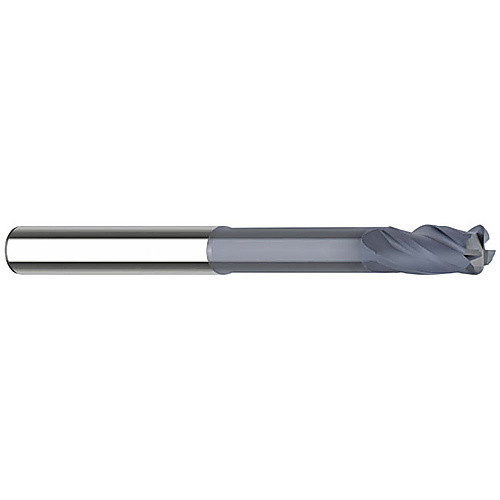

12X26X120 DIAMOND RAD 1.5
| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | 0 |
| Depth of Cut Maximum (APMX) | 26 mm | Tool Type | End Mill |
| Overall Length (OAL) | 120 mm | Decimal Equivalent | 0.4724″ |
| Cutting Edge Material | Carbide | Series/List # | 564 |
| Coating | Diamond | Corner Radius (RE) / Chamfer Width (CHW) | 2 mm |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Straight Shank | Shank Diameter Tolerance (TCDMM) | H6 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.41
