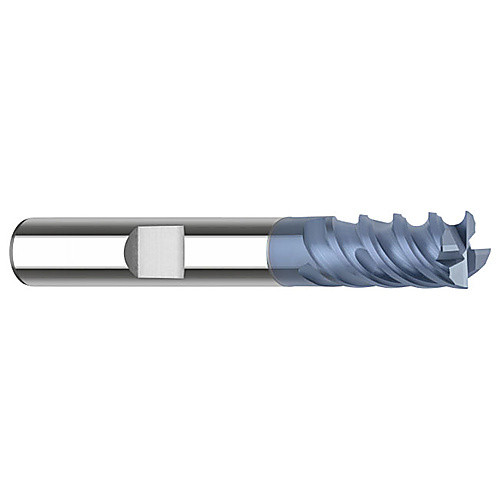

6X13X57 ALTIN CHAMFER
| Cutting Diameter (DC) | 6 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | Hardened Steels 45-65HRC |
| Depth of Cut Maximum (APMX) | 13 mm | Tool Type | End Mill |
| Overall Length (OAL) | 57 mm | Decimal Equivalent | 0.2362″ |
| Cutting Edge Material | Carbide | Series/List # | 310 |
| Coating | AlTiN | Corner Radius (RE) / Chamfer Width (CHW) | 0.05 mm |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 52 Degrees | Single / Double End | Single End |
| Shank Type | Straight Shank | Shank Diameter Tolerance (TCDMM) | H6 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.057
