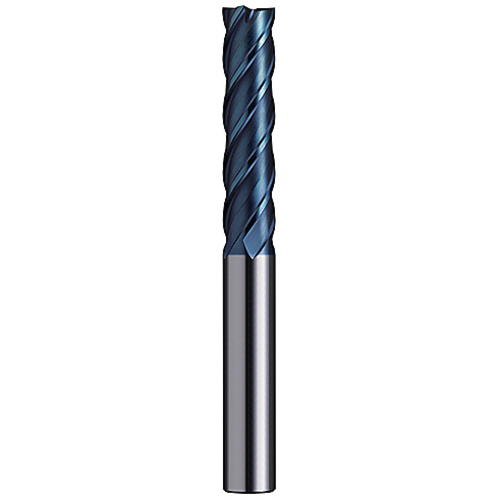

L9777 4FL REVO 4D 1/16
| Cutting Diameter (DC) | 1/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 4 mm | End Shape | Corner Chamfer |
| Depth of Cut Maximum (APMX) | 6.4 mm | Applicable Material | | Steel | Hard Materials | Aluminum / Non-Ferrous Materials |Stainless Steel | Super Alloys / Titanium | |
| Overall Length (OAL) | 40 mm | Decimal Equivalent | 0.0625″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | REVO-M | Series/List # | L9777 |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.005 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.022
