M6X0.75 ENORMZ GLT1 6G OS

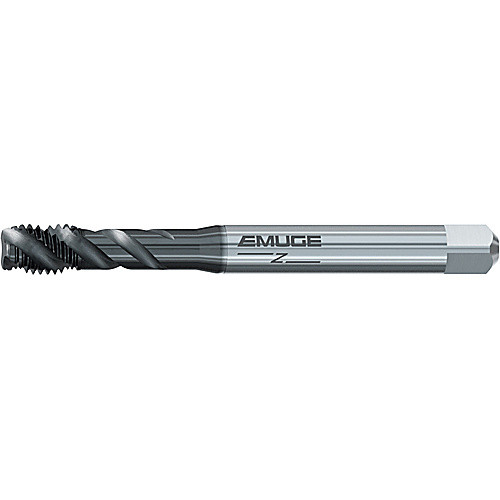

‎Spiral Flute Tap; M6 × 0.75 mm ; 80 mm OAL ; 3 FL ; HSSE ; GLT-1 ; 6G ; Series Enorm Z Oversize

Item # 123362B

Brand: Emuge-Franken

MFG #: B051C420.0229

Legacy Part #: ER45B51C4200229

UPC #: B051C420.0229

Trade Name: Enorm Z

Quantity Available

Thread Diameter Size (TDZ)

Thread Tolerance Class (TCTR)

Thread Pitch (TP)

0.75 mm

Chamfer

Bottoming

Thread Standard

Metric

Coating

GLT-1

Overall Length (OAL)

80 mm

Cutting Direction (HAND)

Right Hand

Usable Length (LU)

30 mm

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

6 mm

Length Group

DIN

Flute Count (NOF)

Square Size

4.9 mm

Flute Helix Angle (FHA)

45 Degrees

Measurement Type

Metric

Applicable Material

| Steel | Hard Materials |

ToolTypeName

Enorm Z

Cutting Edge Material

HSSE

Series/List #

Enorm Z Oversize

Product Features

Remarks

The tap design is optimized for blind hole applications in stainless steel and steel alloys, combining performance and reliability in demanding materials.
A fast spiral flute geometry efficiently evacuates chips from blind holes, helping maintain smooth cutting action and reducing the risk of chip packing.
The GLT-1 coating enhances tool life by providing excellent heat and wear resistance, while also improving lubricity for smoother tapping performance.

Country of Origin

Germany

Shipping Info

Package Weight

0.03
