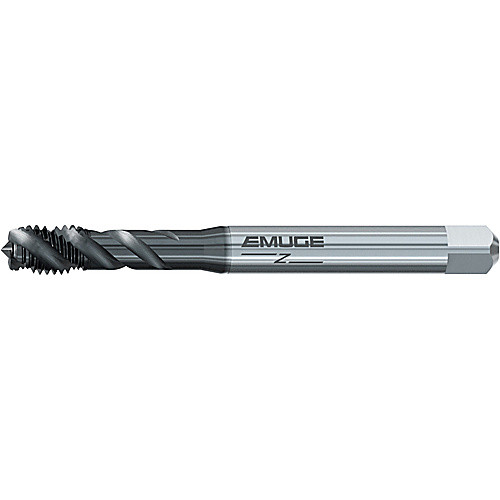

‎M8 ENORM Z GLT-1 6G OS

‎Spiral Flute Tap; M8 × 1.25 mm ; 90 mm OAL ; 3 FL ; HSSE ; GLT-1 ; 6G ; Series Enorm Z Oversize

Item # 123341B

Brand: Emuge-Franken

MFG #: B050C420.0080

Legacy Part #: ER45B50C4200080

UPC #: B050C420.0080

Trade Name: Enorm Z

Quantity Available

Thread Diameter Size (TDZ)

Thread Tolerance Class (TCTR)

Thread Pitch (TP)

1.25 mm

Chamfer

Semi-Bottoming

Thread Standard

Metric

Coating

GLT-1

Overall Length (OAL)

90 mm

Cutting Direction (HAND)

Right Hand

Usable Length (LU)

35 mm

Coolant Supply Property (CSP)

External

Connection Diameter Machine Side (DCONMS)

8 mm

Length Group

DIN

Flute Count (NOF)

Square Size

6.2 mm

Flute Helix Angle (FHA)

45 Degrees

Measurement Type

Metric

Applicable Material

| Steel | Hard Materials |

ToolTypeName

Enorm Z

Cutting Edge Material

HSSE

Series/List #

Enorm Z Oversize

Product Features

Remarks

The tap design is optimized for blind hole applications in stainless steel and steel alloys, combining performance and reliability in demanding materials.
A fast spiral flute geometry efficiently evacuates chips from blind holes, helping maintain smooth cutting action and reducing the risk of chip packing.
The GLT-1 coating enhances tool life by providing excellent heat and wear resistance, while also improving lubricity for smoother tapping performance.

Country of Origin

Germany

Shipping Info

Package Weight

0.06
