Item # 114103B

Brand: Emuge-Franken

MFG #: SEG1080.6573

Legacy Part #: ER4525151

Trade Name: EvoGrip

Quantity Available

Type

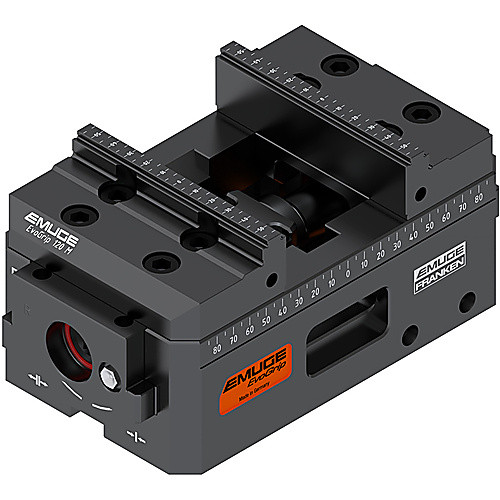

Set Centering Vise

Height

70 mm

Length

200 mm

Material

Steel

Width

120 mm

Set Includes

Base unit, Spindle mount, Lead screw, Spindle cover, Base jaws, Small components (hardware set), Mounting screws for machine table or spacer setup, reversible jaw (left), reversible jaw (right), Jaw mounting screws

Number of Pieces

Model No

‎120-200 M

Jaw Width

120 mm

Product Features

Remarks

‎

Engineered with 120-200 evogrip vice including a set of stepped top jaws and jaw hardware, this tool, featuring industry leading 75kn clamping force, centering vise base unit 120-200 m with reversible jaws featuring flat clamping faces and an offset step designed to hold parts securely without leaving marks., includes stepped-style centering vise set 120-200 m with: base unit, spindle mount, lead screw, spindle cover, base jaws, small components, and mounting screws (for machine table or spacer setup). also includes a set of stepped reversible jaws (2 jaws with screws included)., reversible jaws feature dual-sided contours for internal or external clamping based on part geometry. a male driver on the bottom face of each jaw ensures precise and secure alignment. jaw positioning is flexible thanks to grooves in the base jaws of the centering vise. use the inner groove for zero-point clamping or the outer groove to extend the clamping range. the evogrip 120-200 m model includes two grooves per base jaw for versatile setups., integrated base jaws feature grooves for flexible mounting of reversible jaws. use the inner groove for center (zero-point) clamping or the outer groove to increase the clamping range. reversible jaws have dual-sided contours, allowing you to clamp parts from either the inside or the outside depending on the application., flexible setup options support single-part, multi-part, and single-jaw clamping ideal for large components., advantages: - no clamping marks on the workpiece - flexibility, delivering reliable performance and precise operation.

Country of Origin

Germany

Shipping Info

Package Weight

22.93
