Item # 114099B

Brand: Emuge-Franken

MFG #: SEG1080.6547

Legacy Part #: ER4525147

Trade Name: EvoGrip

Quantity Available

Type

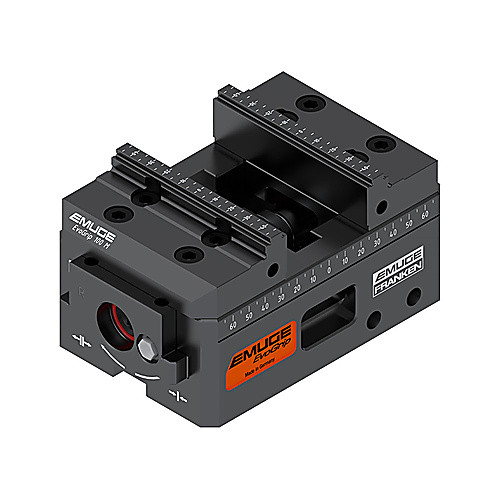

Set Centering Vise

Height

58 mm

Length

150 mm

Material

Steel

Width

100 mm

Set Includes

Base unit, Spindle mount, Lead screw, Spindle cover, Base jaws, Small components (hardware set), Mounting screws for machine table or spacer setup, reversible jaw (left), reversible jaw (right), Jaw mounting screws

Number of Pieces

Model No

‎100-150 M

Jaw Width

100 mm

Product Features

Remarks

‎

Engineered with 100-150 evogrip vice including a set of stepped top jaws and jaw hardware, this tool, featuring 50kn clamping force, centering vise base unit 100-150 m with reversible jaws featuring flat clamping faces and an offset step, designed for secure clamping without leaving marks on the workpiece., includes stepped-style centering vise set 100-150 m with: base unit, spindle mount, lead screw, spindle cover, base jaws, small components, and mounting screws (for machine table or spacer setup). also includes a set of stepped reversible jaws (2 jaws with screws included)., reversible jaws feature dual-sided clamping contours for internal or external clamping depending on the part geometry. each jaw includes a male driver on the lower face for precise alignment. grooves in the base jaws allow flexible jaw positioning. use the inner groove for zero-point clamping or the outer groove to extend the clamping range. evogrip 100-150 m vises include two grooves per base jaw for added versatility., integrated base jaws feature grooves for flexible mounting of reversible jaws. use the inner groove for center (zero-point) clamping or the outer groove to increase the clamping range. reversible jaws have dual-sided contours, allowing you to clamp parts from either the inside or the outside depending on the application., flexible setup options support single-part, multi-part, and single-jaw clamping ideal for large components., advantages: - no clamping marks on the workpiece - flexibility, delivering reliable performance and precise operation.

Country of Origin

Germany

Shipping Info

Package Weight

12.57
