Item # 114097B

Brand: Emuge-Franken

MFG #: SEG1080.6540

Legacy Part #: ER4525172

Trade Name: EvoGrip

Quantity Available

Type

Set Centering Vise

Height

48 mm

Length

130 mm

Material

Steel

Width

70 mm

Set Includes

Base unit, Spindle mount, Lead screw, Spindle cover, Base jaws, Small components (hardware set), Mounting screws for machine table or spacer setup, reversible jaw (left), reversible jaw (right), Jaw mounting screws

Number of Pieces

Model No

‎70-130 M

Jaw Width

70 mm

Product Features

Remarks

‎

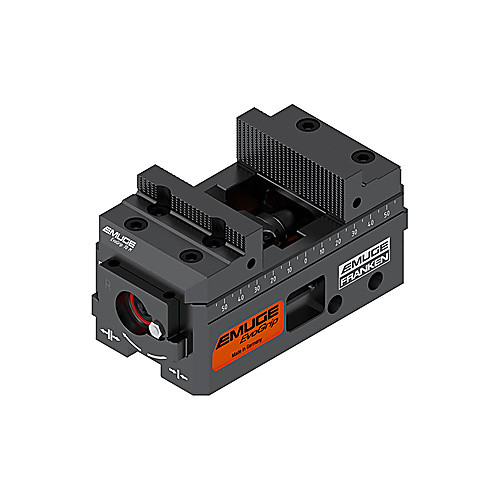

Engineered with 70-130 evogrip vice including a set of knurled jaws and jaw hardware, this tool, featuring 25kn clamping force, centering vise base unit 70-130 m with reversible jaws featuring full-face knurling for maximum grip. ideal for heavy-duty machining and stepless clamping of both pre-hardened and soft materials no pre-stamping required., includes knurled-style centering vise set 70-130 m with: base unit, spindle mount, lead screw, spindle cover, base jaws, small parts, and mounting screws (for machine table or spacer setup). also includes a set of knurled reversible jaws (2 jaws with screws included)., reversible jaws feature dual-sided clamping contours for both internal and external part holding based on component geometry. a male driver on the lower face of each jaw ensures secure alignment. positioning flexibility is enabled by grooves in the base jaws of the centering vise. use the inner groove for zero-point clamping or the outer groove to increase the clamping range. evogrip 70-130 m vises include two grooves per base jaw for versatile setup options., integrated base jaws feature grooves for flexible mounting of reversible jaws. use the inner groove for zero-point (centered) clamping or the outer groove to expand the clamping range. reversible jaws have dual-sided contours, enabling both internal and external clamping depending on the part geometry., flexible setup options support single-part, multi-part, and single-jaw clamping ideal for large components., advantages: - high holding force thanks to positive form fit - no pre-stamping required - flexibility - suitable for heavy machining, delivering reliable performance and precise operation.

Country of Origin

Germany

Shipping Info

Package Weight

6.17
