Herrick Industrial Supply | Clamping, Positioning, Workholding > Vises > Vise Accessories

Type

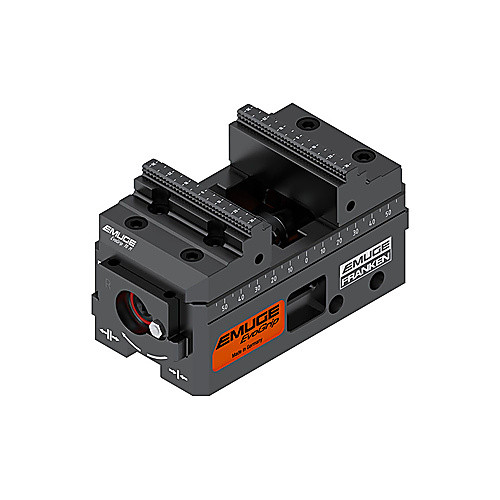

Set Centering Vise

Height

48 mm

Length

130 mm

Material

Steel

Width

70 mm

Set Includes

Base unit, Spindle mount, Lead screw, Spindle cover, Base jaws, Small components (hardware set), Mounting screws for machine table or spacer setup, reversible jaw (left), reversible jaw (right), Jaw mounting screws

Number of Pieces

10

Model No

‎70-130 M

Jaw Width

70 mm

Product Features

Remarks

‎

Engineered with 70-130 evogrip vice including a set of double grip jaws and jaw hardware, this tool, featuring 25kn clamping force, centering vise base unit 70-130 m with reversible jaws featuring double-row grip faces on the upper step. designed for heavy-duty machining and capable of clamping both soft and pre-hardened materials without pre-stamping. (note: for harder materials, please inquire.), includes 70-130 m doublegrip-style centering vise set, complete with: base unit, spindle mount, lead screw, spindle cover, base jaws small components and mounting screws (for machine table or spacer setup) set of doublegrip reversible jaws (2 jaws with screws included), reversible jaws feature dual-sided clamping contours, allowing for both internal and external clamping depending on the part geometry. a male driver on the bottom face of each jaw ensures secure alignment. jaw positioning is adjustable using the grooves in the base jaws of the centering vise. use the inner groove for zero-point clamping or the outer groove to extend the clamping range. evogrip 70-130 m vises feature two grooves per base jaw for added setup flexibility., integrated base jaws include grooves for quick and flexible mounting of reversible jaws. use the inner groove for center (zero-point) clamping, or the outer groove to extend the clamping range. reversible jaws feature dual-sided contours, allowing you to clamp components from either the inside or outside depending on your setup., flexible setup options support single-part, multi-part, and single-jaw clamping ideal for large components., advantages: - high holding force thanks to positive form fit - no pre-stamping required - flexibility - suitable for heavy machining, delivering reliable performance and precise operation.

Country of Origin

Germany

Shipping Info

Package Weight

6.17
