Item # 114094B

Brand: Emuge-Franken

MFG #: SEG1080.5619

Legacy Part #: ER4525171

Trade Name: EvoGrip

Quantity Available

Type

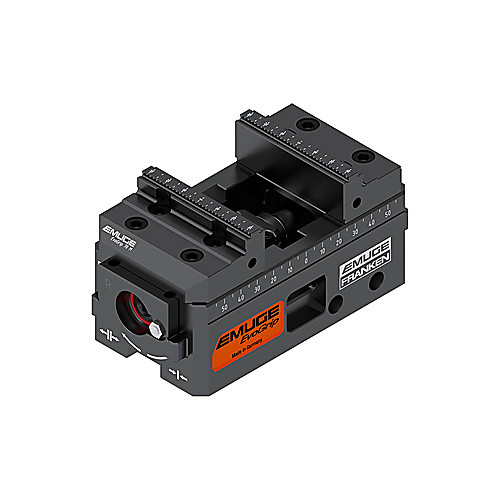

Set Centering Vise

Height

48 mm

Length

130 mm

Material

Steel

Width

70 mm

Set Includes

Base unit, Spindle mount, Lead screw, Spindle cover, Base jaws, Small components (hardware set), Mounting screws for machine table or spacer setup, reversible jaw (left), reversible jaw (right), Jaw mounting screws

Number of Pieces

Model No

‎70-130 M

Jaw Width

70 mm

Product Features

Remarks

‎

Engineered with 70-130 evogrip vice including a set of grip top jaws and jaw hardware, this tool, featuring 25kn clamping force, centering vise base unit 70-130 m with reversible jaws featuring a grip clamping face on the upper step. built for heavy-duty machining and ideal for clamping both soft and pre-hardened materials no pre-stamping required.(note: for harder materials, please inquire.), includes grip-style centering vise set 70-130 m with: base unit, spindle mount, lead screw, spindle cover, base jaws, small components, and mounting screws (for machine table or spacer setup).also includes a set of grip reversible jaws (2 jaws with screws), reversible jaws feature dual-sided contours, allowing for both internal and external clamping depending on the part.each jaw includes a male driver on the bottom face for secure placement.the grooves in the vise's base jaws allow flexible jaw positioning.use the inner groove for zero-point clamping; use the outer groove to expand the clamping range.the evogrip 70-130 m version includes two grooves per base jaw for added versatility., integrated base jaws feature grooves for easy positioning of reversible jaws.use the inner groove for center (zero-point) clamping, or the outer groove to increase the clamping range.reversible jaws have dual-sided contours, allowing for both internal and external clamping based on part geometry., flexible setup options support single-part, multi-part, and single-jaw clamping ideal for large components.,advantages: - high holding force thanks to positive form fit - no pre-stamping required - flexibility - suitable for heavy machining, delivering reliable performance and precise operation.

Country of Origin

Germany

Shipping Info

Package Weight

6.17
