1400SD .1250.8750 x3.500RM ST 4 FL

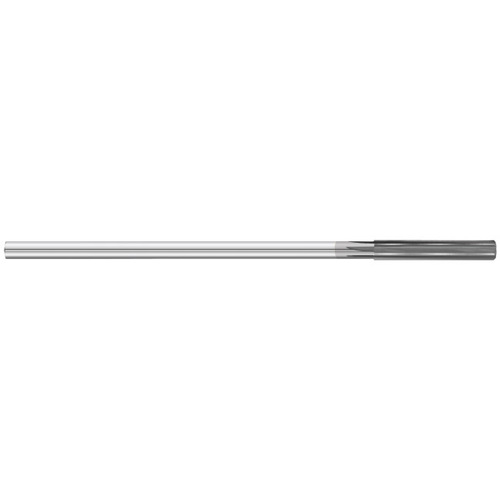

‎Chucking Reamer; 1/8″ Dia. × 7/64″ Shank Dia. × 3-1/2″ OAL × 7/8″ LCF ; 4 FL ; Carbide ; Uncoated

Item # FUL 14511

Brand: Fullerton Tool

MFG #: 14511

Legacy Part #: FT8014511

Trade Name: 1400 General Purpose End Mill

Quantity Available

Cutting Diameter (DC)

1/8″

Cutting Edge Material

Carbide

Connection Diameter Machine Side (DCONMS)

7/64″

Shank Type

Round

Flute Count (NOF)

Flute Type

Straight

Overall Length (OAL)

‎3-1/2″

Coolant Supply Property (CSP)

External

Cutting Direction (HAND)

Right Hand

Length Chip Flute (LCF)

7/8″

Flute Helix Angle (FHA)

0 Degrees

Decimal Equivalent

0.1250″

Coating

Uncoated

Product Features

Remarks

Straight Flutes

Number of Flutes Varies by Diameter

Carbide Reamers

Manufactured Using Female and Male Centers for Improved Concentricity

Male centers on items up to .1124″ (2.86mm)

45° lead angle

Short and standard lengths

Standard Uncoated

Metric and Inch Based Tools

Cutter Diameter up to .250″: +0.0002″ -.0000″ / over: .2501″: +0.0003″ -.0000″ (or up to 6.35mm: +0.005mm -.000mm / over 6.351mm: +0.008mm -.000mm)

Shank Diameter: +.0005″ -.0005″ (+.013mm -.013mm)

Steel Shanks on Items over .2812″ Cutting Diameter and 4.000″ in Length

Country of Origin

USA

Shipping Info

Package Length

3.70000

Package Width

.30000

Package Height

.30000

Package Weight

0.02
