1415STB .3755X1.125FL OU

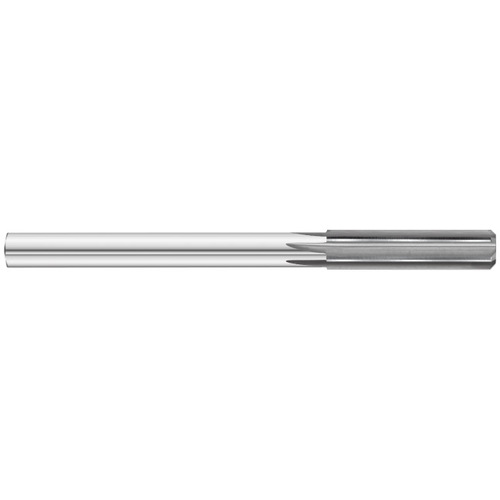

‎Chucking Reamer; 0.3755″ Dia. × 11/32″ Shank Dia. × 3-1/2″ OAL × 1-1/4″ LCF ; 6 FL ; Carbide ; Uncoated

Item # FUL 14171

Brand: Fullerton Tool

MFG #: 14171

Legacy Part #: FT8014171

Trade Name: 1415 Over/Under Reamer

Quantity Available

Cutting Diameter (DC)

0.3755″

Cutting Edge Material

Carbide

Connection Diameter Machine Side (DCONMS)

11/32″

Shank Type

Round

Flute Count (NOF)

Flute Type

Straight

Overall Length (OAL)

‎3-1/2″

Coolant Supply Property (CSP)

External

Cutting Direction (HAND)

Right Hand

Length Chip Flute (LCF)

‎1-1/4″

Flute Helix Angle (FHA)

0 Degrees

Decimal Equivalent

0.3755″

Coating

Uncoated

Product Features

Remarks

Straight (ST) Flutes

Solid Carbide Reamers

Manufactured Using Female and Male Centers for Improved Concentricity (Male Centers on Items up to .1124″ (2.86mm))

45° Lead Angle

Short Lengths

Standard Uncoated

Inch Based Tools

Tolerance Shank Diameter: +.0005″ -.0005″

Tolerance Cutter Diameter up to .2500″: +0.0002″ -.0000″ and over .2501″: +0.0003″ -.0000″

Country of Origin

USA

Shipping Info

Package Weight

0.155
