1410STB.2545 -.2844 1.1250x3.250RM LH 6 FL

‹ ›

1410STB.2545 -.2844 1.1250x3.250RM LH 6 FL

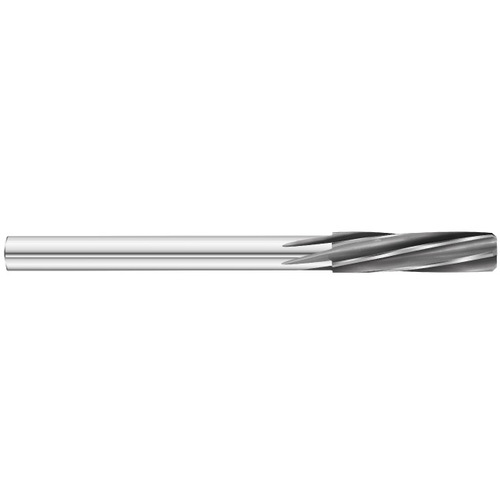

‎Chucking Reamer; 0.2573″ Dia. × 1/4″ Shank Dia. × 3-1/4″ OAL × 1-1/8″ LCF ; 6 FL ; Carbide ; Uncoated

Item # FUL 1410L15.2573

Brand: Fullerton Tool

MFG #: 1410L15.2573

Legacy Part #: FT801410L15

Trade Name: 1410 JIT Reamer

Quantity Available

Cutting Diameter (DC)

0.2573″

Cutting Edge Material

Carbide

Connection Diameter Machine Side (DCONMS)

1/4″

Shank Type

Round

Flute Count (NOF)

Flute Type

Spiral

Overall Length (OAL)

‎3-1/4″

Coolant Supply Property (CSP)

External

Cutting Direction (HAND)

Left Hand

Length Chip Flute (LCF)

‎1-1/8″

Coating

Uncoated

Decimal Equivalent

0.2573″

Product Features

Remarks

Straight (ST), Left Hand (LH) Spiral and Right Hand (RH) Spiral Flutes Available (R in EDP Number Designates RH Spiral and L in EDP Number Designates LH Spiral)

Straight Flutes - For all types of general reaming applications.

LH Spiral Flutes - Produces better finishes on hard materials such as heat-treated steels. Shear action is excellent for holes with interruptions; i.e., keyways, elongated slots, etc.

RH Spiral Flutes - For blind holes and abrasive, ductile materials. Do not use for holes with interruptions unless material is reasonably soft.

Solid Carbide Reamers

Manufactured Using Female and Male Centers for Improved Concentricity (Male Centers on Items up to .1124″ (2.86mm))

Available with Coating at Tolerances as Low as .0001″ at an Additional Charge

45° Lead Angle

Short Lengths

Standard Uncoated

Inch Based Tools

Same Day Delivery if Ordered by 11 AM (EST) - add 20% to Price

Tolerance Shank Diameter: +.0005″ -.0005″ (or +.013mm -.013mm)

Tolerance Cutter Diameter up to .2500″: +0.0002″ -.0000″ and over .2501″: +0.0003″ -.0000″ (up to 6.35mm: +0.005mm -.000mm and over 6.351mm: +0.008mm -.000mm)

.0001″ Tolerances Available (+20%)

Country of Origin

USA
