SX5F375-060 S2

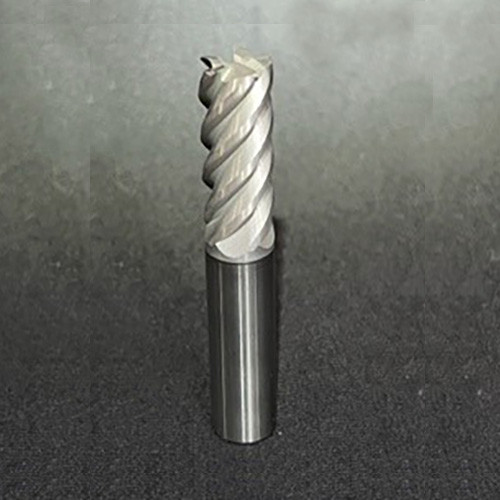

SQ End Mill; 3/8″ Dia. × 1-1/2″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 0.06″ RE ; 5 FL ; Carbide ; coated
| Cutting Diameter (DC) | 3/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 2-1/2″ | Grade | S2 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | coated | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Extreme Performance Carbide End Mill For Today's Difficult-To-Machine Aerospace Alloys | Country of Origin | China |
