SR4F750R AR

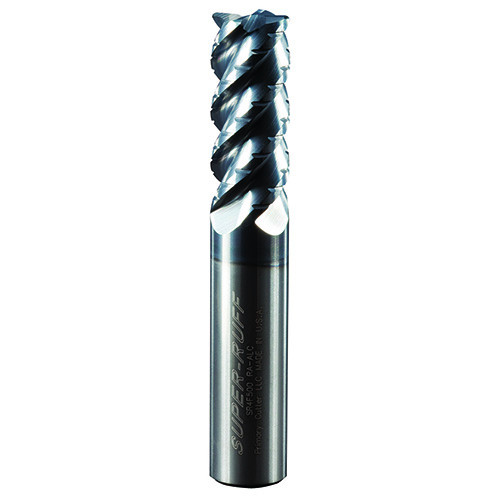

SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 4 FL ; Carbide ; coated
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Medium Profiling | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 4″ | Grade | AR |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | coated | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Family Description | High Performance Carbide End Mill with Chipbreakers for Medium Profiling Ferrous Materials <45 HRC | Country of Origin | USA |
