SR3F750LR AR

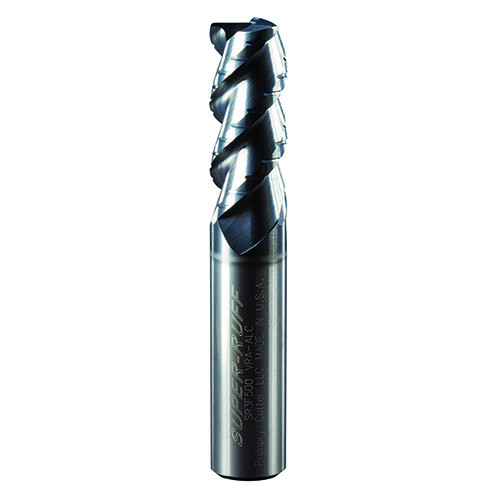

SQ End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.03″ RE ; 3 FL ; Carbide ; coated
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Heavy Profiling | Slotting | |
| Depth of Cut Maximum (APMX) | 2-1/4″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 5″ | Grade | AR |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | coated | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | High Performance Carbide End Mill with Chipbreakers for Slotting & Heavy Profiling Non-Ferrous and Ferrous Materials<45 HRC ISO CODE | Country of Origin | Usa |
