SM4F312R AR

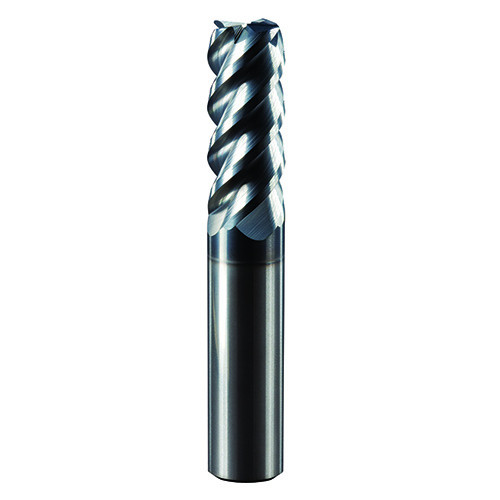

SQ End Mill; 5/16″ Dia. × 1-3/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 0.015″ RE ; 4 FL ; Carbide ; coated
| Cutting Diameter (DC) | 5/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Application | | Finishing | Medium Profiling | |
| Depth of Cut Maximum (APMX) | 1-3/16″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2-1/2″ | Grade | AR |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | coated | Decimal Equivalent | 0.313″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Family Description | High Performance Carbide End Mill for Medium Profiling & Finishing Ferrous Materials <45 HRC | Country of Origin | China |
Shipping Info
Package Weight
0
