SM3F218SR AR

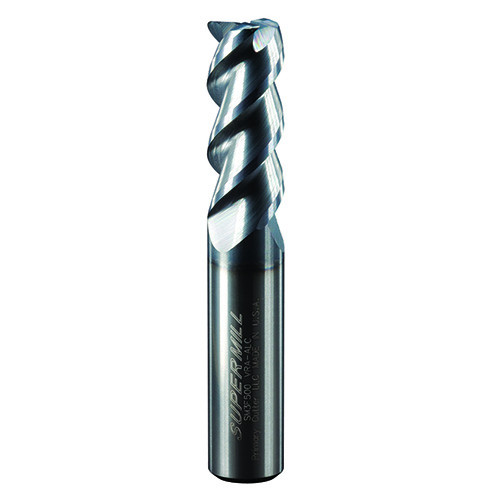

SQ End Mill; 0.219″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 0.015″ RE ; 3 FL ; Carbide ; coated
| Cutting Diameter (DC) | 0.219″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Application | | Heavy Profiling | Slotting | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2″ | Grade | AR |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | coated | Decimal Equivalent | 0.219″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Family Description | High Performance Carbide End Mill for Slotting and Heavy Profiling Non-Ferrous & Ferrous Materials <45 HRC | Country of Origin | China |
