6FL DBL ANG CHF T-PROMAX

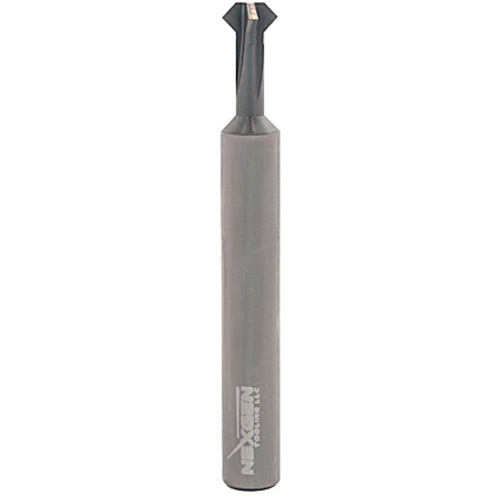

Chamfer Mill; 3/16″ Dia. × 0.095″ LU × 0.095″ LOC × 2″ OAL × 3/16″ Shank Dia. ; 4 FL ; 90 Degrees ; Carbide ; Series CHM-DA
| Cutting Diameter (DC) | 3/16″ | Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 0.095″ | Point Angle (SIG) | 90 Degrees |
| Flute Count (NOF) | 4 | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.095″ | Tool Type | Chamfer Mill |
| Overall Length (OAL) | 2″ | Series/List # | CHM-DA |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.032
