F4047.B22.050.Z04.08

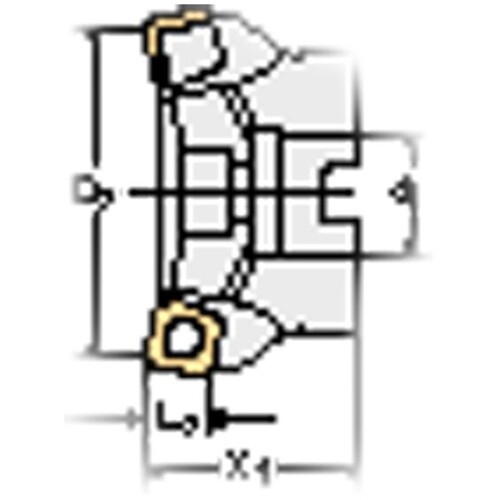

Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 8 mm Max Depth ; 4 Inserts ; 75 Degrees ; Series F4047
| Cutting Diameter (DC/DCX) | 50 mm | Overall Length (OAL) | 40 mm |
| Cutting Diameter (DC) | 47.943 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 4 | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Depth of Cut Maximum (APMX) | 8 mm | Series/List # | F4047 |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.713
